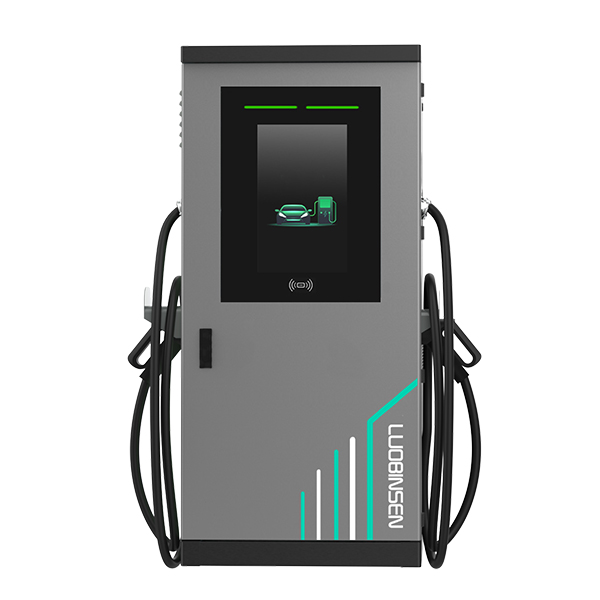

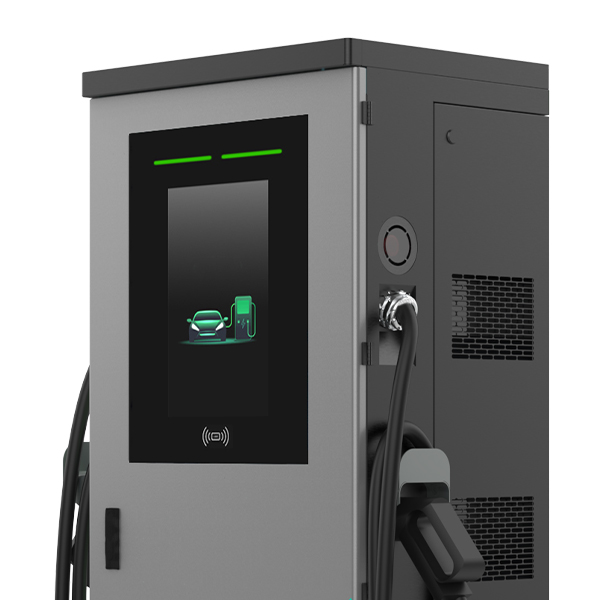

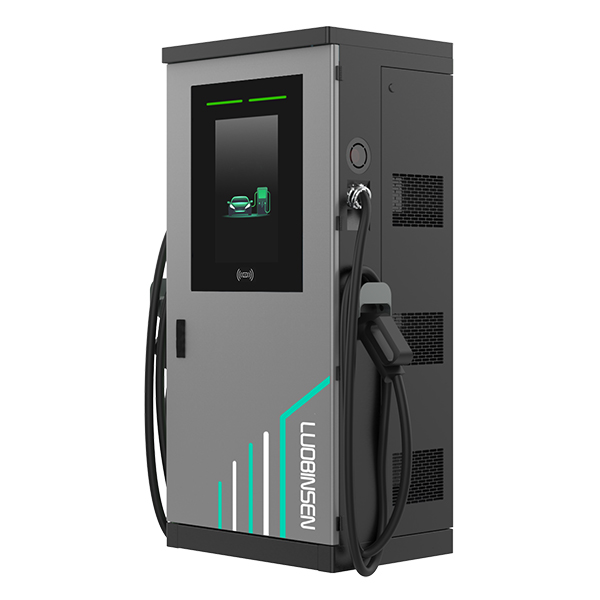

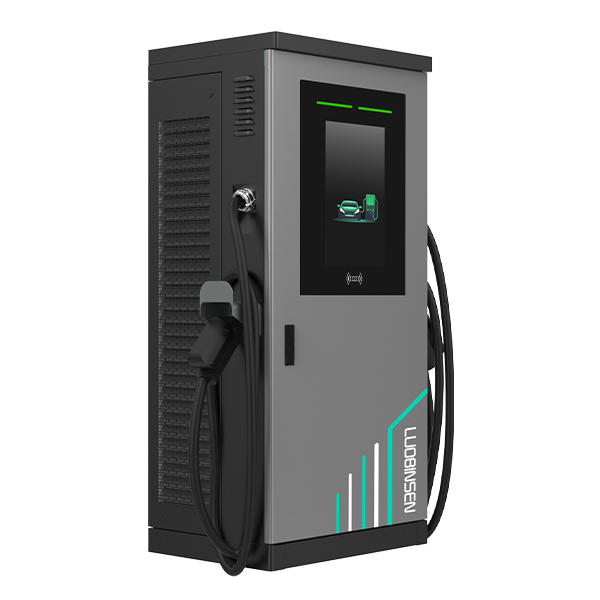

All-In-One DC Charger (120kW)

The complete new self-developed central control system, provides more efficient charging function and more comprehensive safety protection.

Wide voltage output range of DC200-1000V, high power selection range of 60kW-360kW, support GBT, CCS1, CCS2, CHAdeMO multi-standard charging mode, suitable for different needs of personal, commercial, fleet and operators.

Description

HMI

  • —15.6 inch super big touch screen , provides more intuitive charging process to customer.
  • —meanwhile advertising implantation is available, bringing additional revenue to customers.
  • —Multi-languages optional for all over the world customer.



Multifunctional TCU and central controller:

  • —2GB of memory, faster data processing capabilities, local 5G hard drive, which can maintain over 30,000 charging records and over 6 months of operation records.
  • —Support remote software upgrade of the system, firmware version, no need for on-site maintenance, efficient and convenient
  • —Supports multiple network communication methods such as 100Mbps Ethernet port, WiFi, and 4G

Cabinet design:

  • —Aluminum and zinc-clad cabinet material,mechanical strength IK10, outdoor protection level IP55.
  • —Designed with independent air ducts for left and right ventilation, adequate heat dissipation.

Safety protection function:

—Short circuit protection, over/under voltage protection, voltage/current limit protection, overheat protection, lightning protection,etc.

  • —Charging gun temperature monitoring protection,and Pt1000 temperature sensor installed in cabinet.
  • —Tilt angle protection function, when the cabinet body tilts more than 30 degrees, the charging machine immediately stops charging.
  • —The water immersion protection function of the cabinet body immediately stops charging when the internal water immersion of the cabinet body exceeds a height of 30CM.

Specifications

Electrical

Charger power

60kW, 80kW, 90kW, 120kW

Input Rating

AC380V/400V/415V/440V/480V, 50Hz/60Hz, 3P+N+PE

Output Voltage

DC 200~1000V

Output Current

200A max. for each connector, 200A max total(60kW)

200A max. for each connector, 260A max total(80kW)

200A max for each connector, 300A max. total(90KW)

200A max for each connector, 400A max. total(120KW)

Full Load Power Factor

>0.99

THD

≤5%

Full of Efficiency

>95% at full load

Interface and Control

HMI

15.6'' high brightness TFT touch screen display

RFID

ISO/IEC 14443A/B, ISO/IEC15393

Payment

APP/Payment terminal (optional)

Connector standard

CCS1, CCS2, GBT, CHAdeMO

Network Connection

Ethernet, 4G, WiFi (optional)

Platform Communication

OCPP 1.6J (to be upgraded to OCPP 2.0)

Languages

Chinese/English (other language available on request)

Environment

Enclosure Rating

IP55/IK10

Operating Temperature

-30℃~50℃ (-22℉~122℉)

Recommended Storage

-40℃~70℃ (-40℉~158℉) dry environment

Altitude

<2000m (over 2000m de-rating power output)

Relative Humidity

0~95% (no condensation)

General

Charging Cable

5m standard (other length is optional)

Installation Mode

Fixed Installation

Size(W✖D✖H)

740mm*570mm*1600mm  (without charging gun rack)

Weight

164KG±10KG (wihout power module)

Cooling Method

Forced fan cooling

Safety and Regulation

Detection and Protection

Leakage protection, insulation protection, short circuit protection, over/under voltageprotection, over current protection, surge protection.

Standard & Certificate

IEC61851, IEC62196, ISO15118/DIN70121, CE/TUV/UKCA mark
