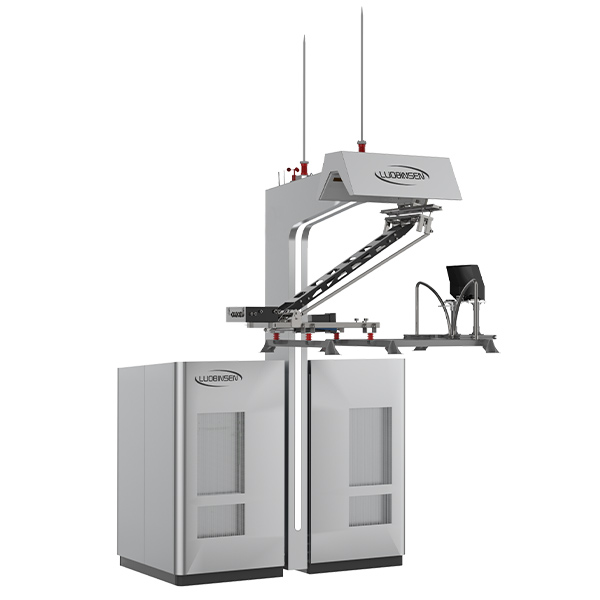

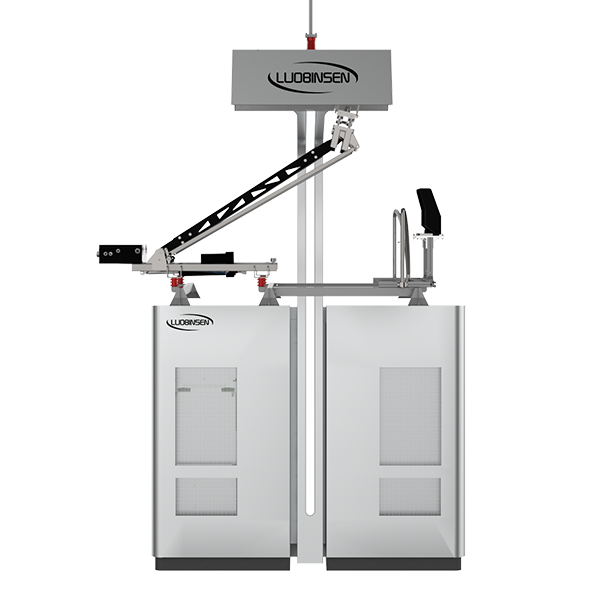

Upward Pantograph

316L stainless steel

Backup power system

15 safety protection

PT1000 thermistor

Dual fire protection system

Constant temperature control system

Pantograph automatic lifting with one-button

Gold plating process in charging rack conductive copper

The important components are of international famous brands

Description

Application Scenario

Public transportation company

Benefits

316L stainless steel

Backup power system

15 safety protection

PT1000 thermistor

Dual fire protection system

Constant temperature control system

Pantograph automatic lifting with one-button

Gold plating process in charging rack conductive copper

The important components are of international famous brands

Specifications

ModelUpward pantograph
Electrical
Maximum Output Power200kW~480kW
Input VoltageAC380V/400V/415V/440V/480V, 50Hz/60Hz, 3P+N+PE
Output VoltageDC200~1000V
Input Current DC5-500A
Full Load Power Factor>0.99
THD≤5%
Full of Efficiency>95% at full load
Interface and Control
Interface Connection TypeUpward
Interface TypePantograph
HMI15.6'' high brightness TFT touch screen display
RFIDSO/IEC 14443A/B, ISO/IEC15393
Network ConnectionEthernet, 4G, WiFi (optional)
LanguagesChinese/English (other language available on request)
Platform CommunicationKSC/OCPP 1.6J (to be upgraded to OCPP 2.0)
Environment
Enclosure ProtectionIP55/IK10
Operating Temperature-30℃~50℃
Storage Temperature -40℃~70℃
Altitude<2000m (over 2000m down rate power output)
Humidity0~95% (No condensation)
General
Communication MethodPLC/WiFi
Installation ModeFixed Installation
Dimension (WxDxH)3000*2000*2300mm (cabinet)  650*250*4500mm (charge rack)
Weight2950±20kg
Cooling MethodForced fan cooling / Air-condition cooling (optional)
Safety and Regulation
Safety protectionLeakage protection, insulation protection, short circuit protection, over/under voltage protection, over current protection, surge protection, emergency stop protection.
Material316L Stainless Steel
Wind ResistancePassed Class 12 wind test
